BOM4015HL-G323TX1

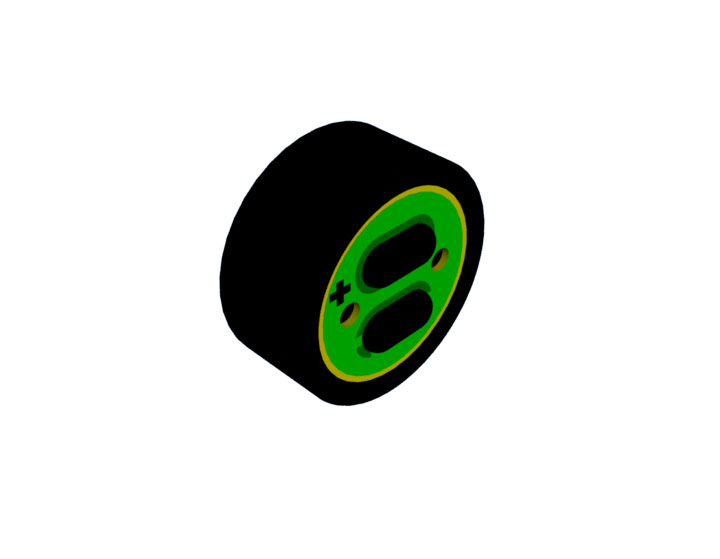

這是一款 φ4.0×1.5mm駐極體電容（ECM）全指向焊線麥克風
優勢與特點
-
φ4.0×1.5mm 全向麥克風
-
靈敏度：-32±3dB
-
信噪比（SNR）:type.60dB
-
焊線產品
-
符合 RoHS2.0 標準
性能參數
| No. | Parameter | Symbol | Condition | Limits | Unit | ||
| Min | Nom. | Max | |||||
| 3.1 | Sensitivity | S | f=1kHz, Pin=1Pa, 0dB=1V/Pa | -35 | -32 | -29 | dB |
| 3.2 | Directivity | Omni-directional | |||||
| 3.3 | Output Impedance | ZOUT | f=1kHz | 2.2 | kΩ | ||
| 3.4 | Current Consumption | IDSS | RL=2.2kΩ, Vs=2.0V | 500 | μA | ||
| 3.5 | S/N Ratio | S/N | f=1kHz, Pin=1Pa, (A-Weighted) | 60 | dB | ||
| 3.6 | Operating Voltage | Vmic | 1.5 | 5 | V | ||
| 3.7 | Sensitivity vs. Voltage | ΔS | Vs= 2.0V to 1.5V | 3 | dB | ||
| 3.8 | Total Harmonic Distortion | THD | 94dB SPL at 1kHz | 1 | % | ||
| 105dB SPL at 1kHz | 1.5 | ||||||
| Note：Considering tester and testing difference between each other, sensitivity 0.5 dB out of specification will be acceptable by customer for an acceptance. | |||||||
應用實例
-
頭戴耳機
